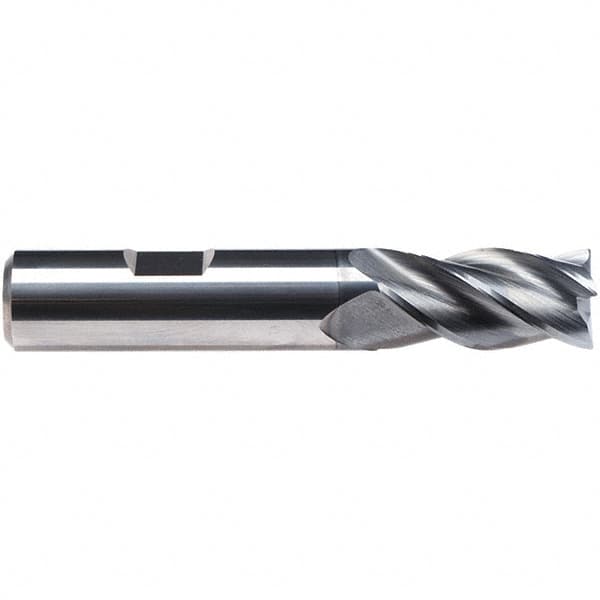

Emuge - 1" Diam, 1-1/2" LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - CrN Finish, 4" OAL, 1" Shank Diam, Weldon Shank, 38° Helix, Centercutting, Regular Length
Item #: 47950563
Brand: Emuge
Model #: 2995L.1000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| End Type | Square |
| Chamfer Length (Decimal Inch) | 0.0120 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlCr |
| Length of Cut (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Shank Type | Weldon |
| Helix Angle | 38 |
| Single or Double End | Single |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series/List | 2995L |
