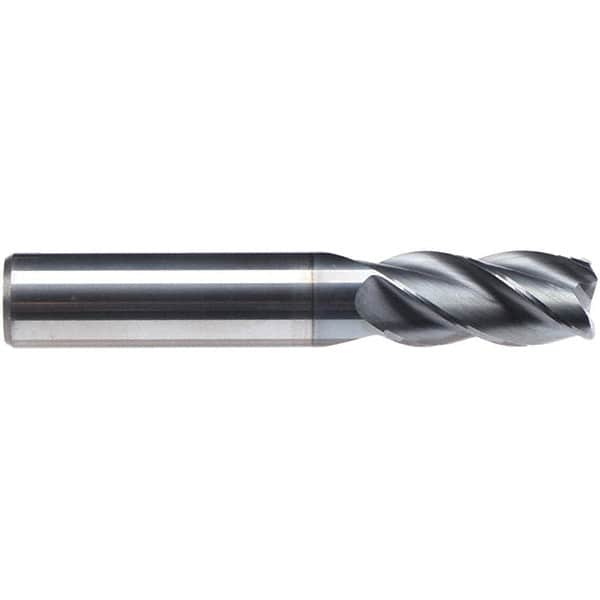

Emuge - 5/8" Diam, 1-1/4" LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - CrN Finish, 3-1/2" OAL, 5/8" Shank Diam, Weldon Shank, 38° Helix, Centercutting, Regular Length
Item #: 47950191
Brand: Emuge
Model #: 2999L.062060
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications | |
---|---|
Mill Diameter (Inch) | 5/8 |
End Type | Square |
Corner Radius (Decimal Inch) | 0.0600 |
Number of Flutes | 4 |
Material | Solid Carbide |
Finish/Coating | AlCr |
Length of Cut (Inch) | 1-1/4 |
Shank Diameter (Inch) | 5/8 |
Overall Length (Inch) | 3-1/2 |
Centercutting | Center Cutting |
Extended Reach | ExtendedReach |
Shank Type | Weldon |
Helix Angle | 38 |
Single or Double End | Single |
Length Type | Regular |
Cutting Direction | Right Hand |
Flute Direction | Right Hand |
Series/List | 2999L |
