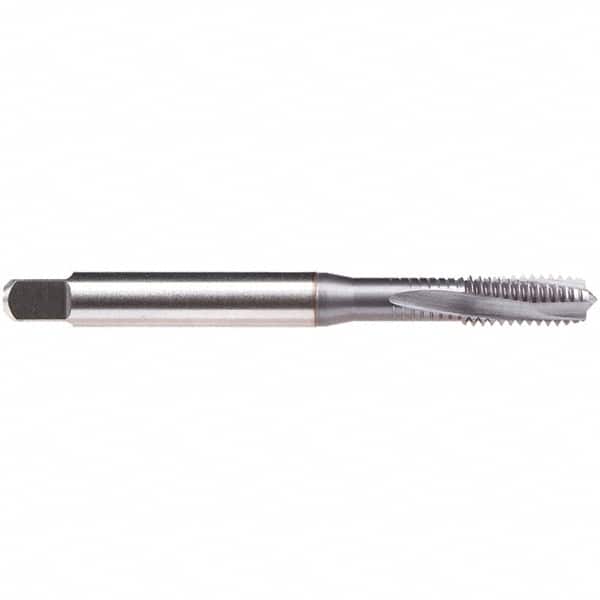

Emuge - #10-32 UNF, 3 Flute, 10° Helix, Modified Bottoming Chamfer, TiCN Finish, High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 2.756" OAL, 0.194" Shank Diam, 0.591" Thread Length, 3BX Class of Fit, Series BU35J411
Item #: 47944830
Brand: Emuge
Model #: BU35J411.5637
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Finish/Coating | TiCN |
| Overall Length (Decimal Inch) | 2.7560 |
| Helix Angle | 10 |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5910 |
| Series/List | BU35J411 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Nickel Alloys |
