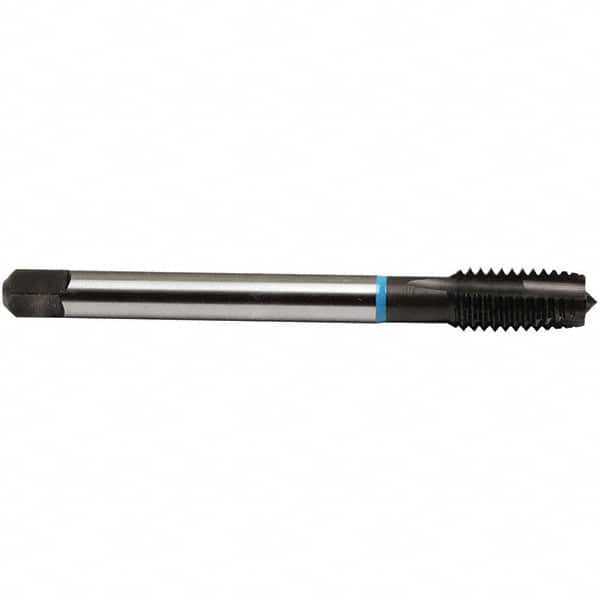

Emuge - M16x2.00 M 3 Flute BT Plug Spiral Flute Tap - High Speed Steel, Nitride Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, Series Rekord B-VA
Item #: 47943956
Brand: Emuge
Model #: C0203000.1060
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M16x2.00 |
| Chamfer | Plug |
| Class of Fit | BT |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 110.00 |
| Helix Angle | 0 |
| Thread Standard | M |
| Thread Length (mm) | 27.00 |
| Flute Type | Spiral |
| Style | Spiral Flute |
| Series/List | Rekord B-VA |
| Tapping Depth (mm) | 27.00 |
| Shank Diameter (mm) | 12.00 |
| Material Application | Stainless Steel; Steel |
