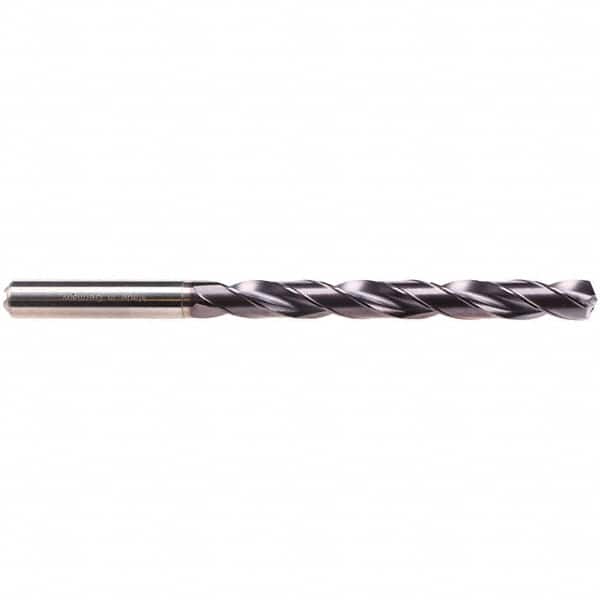

Emuge - #18, 135° Drill Point, Spiral Flute, Solid Carbide Taper Length Drill Bit - TiAlN Finish, 48mm Flute Length, 88mm OAL, EF-DRILL Series
Item #: 47940036
Brand: Emuge
Model #: TA223344.0430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 4.30 |
| Drill Bit Size (Wire) | #18 |
| Drill Bit Size (Decimal Inch) | 0.1693 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Four Facet |
| Flute Length (mm) | 48.00 |
| Overall Length (mm) | 88.00 |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 38.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.90 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535 (Shank); DIN 6537K |
| Material Grade | High Performance |
| Series/List | EF-DRILL |
| Additional Information | Double Margin Flute; Long Length |
