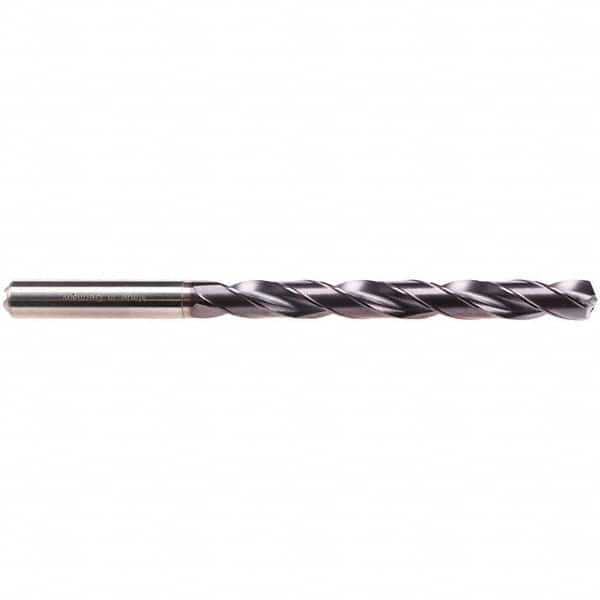

Taper Length Drill Bit: 0.2402″ Dia, 135 ° TiAlN Finish, RH Cut, Spiral Flute, Straight Shank, Series EF-DRILL
Item #: 47939814
Brand: Emuge
Model #: TA223344.0610
Product Specifications
| Drill Bit Size (mm) | 6.10 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Flute Length (mm) | 70.00 |
| Shank Type | Straight |
| Point Type | Four Facet |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 135 |
| Overall Length (mm) | 107.00 |
| Shank Diameter (mm) | 8.00 |
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | EF-DRILL |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 56.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.30 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Additional Information | Long Length; Double Margin Flute |
