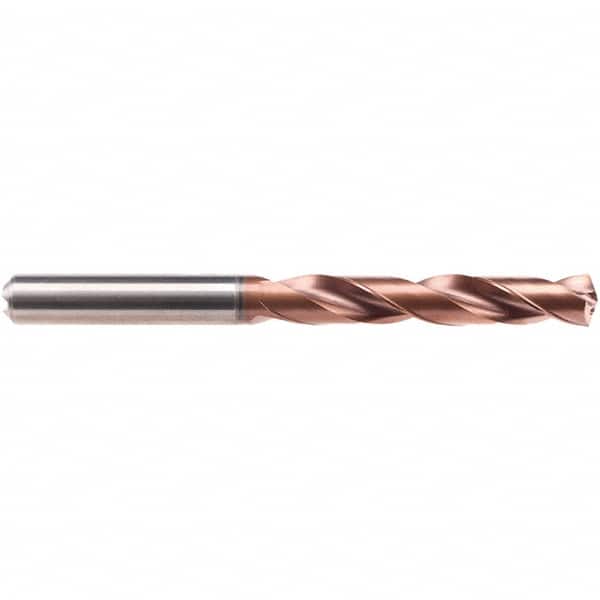

Jobber Length Drill Bit: 0.5945″ Dia, 140 °, Solid Carbide AlCrN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 47932462
Brand: Emuge
Model #: TA214524.1510
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5945 |
| Drill Bit Size (mm) | 15.10 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlCrN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 133.00 |
| Flute Length (mm) | 83.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 3.00 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | Sub Micrograin |
| Specification Designation | DIN |
