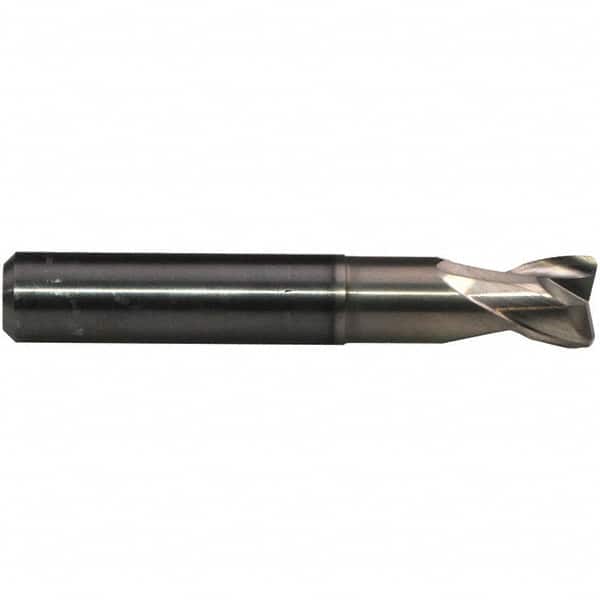

Emuge - 1/4" Diam, 1/4" LOC, 2 Flute Solid Carbide Roughing & Finishing End Mill - CrN Finish, 2-1/4" OAL, 1/4" Shank Diam, Cylindrical Shank, 30° Helix, Stub Length
Item #: 47930961
Brand: Emuge
Model #: 1942R.0250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Chromium Nitride (CrN) is a coating similar to TiN, but has higher heat resistance. It is commonly used on aluminum, brass, copper, nickel alloys and other non-ferrous metals.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/4 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0234 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | CrN |
| Length of Cut (Inch) | 1/4 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/4 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 30 |
| Reach Length (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.2362 |
| Single or Double End | Single |
| Length Type | Stub |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +/-0.0004 |
| Series/List | 1942R |
