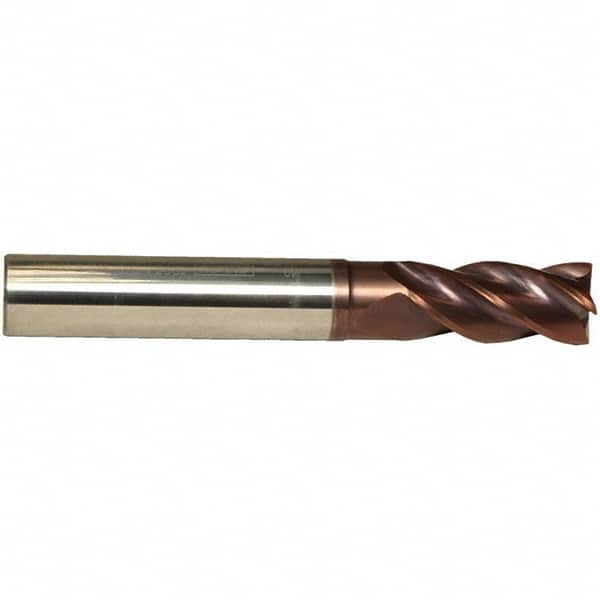

Emuge - 1/4" Diam, 17/32" LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - TiAlN Finish, 2-1/4" OAL, 1/4" Shank Diam, Cylindrical Shank, 38° Helix, Centercutting, Long Length
Item #: 47930169
Brand: Emuge
Model #: 1998A.0250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/4 |
| End Type | Square |
| Chamfer Length (Decimal Inch) | 0.0050 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Length of Cut (Inch) | 17/32 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/4 |
| Centercutting | Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Cylindrical |
| Helix Angle | 38 |
| Reach Length (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.2420 |
| Single or Double End | Single |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series/List | 1998A |
