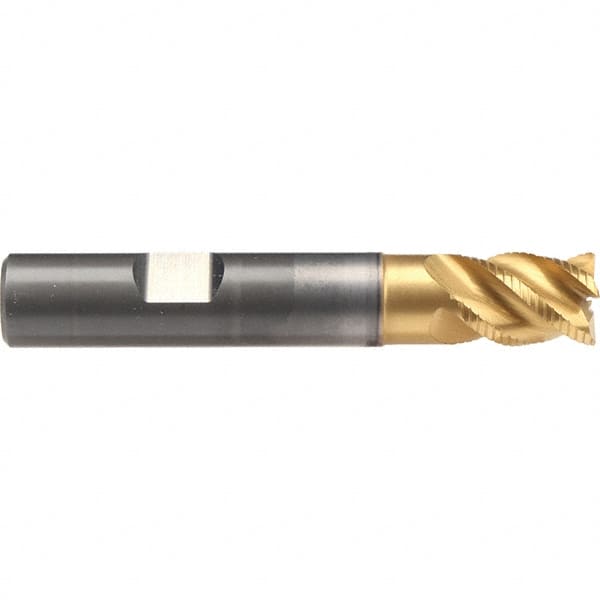

Emuge - 20mm Diam, 26mm LOC, 4 Flute Solid Carbide Roughing & Finishing End Mill - TiN/TiAlN Finish, 92mm OAL, 20mm Shank Diam, Weldon Shank, 45° Helix, Stub Length
Item #: 47928049
Brand: Emuge
Model #: 2647TZ.020
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
TiN/TiAlN s a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| End Type | Square |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiN/TiAlN |
| Length of Cut (mm) | 26.0000 |
| Shank Diameter (mm) | 20 |
| Overall Length (mm) | 92 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Shank Type | Weldon |
| Helix Angle | 45 |
| Single or Double End | Single |
| Length Type | Stub |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.13 |
| Series/List | 2647TZ |
