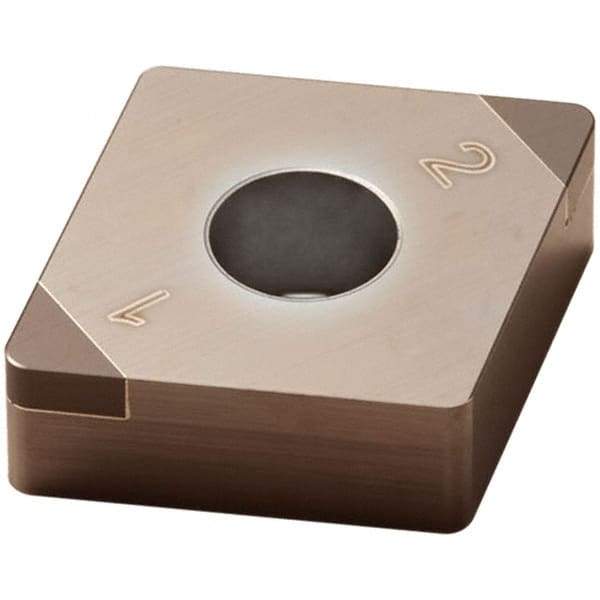

Seco - CNGA431S Grade CH0550 PCBN Turning Insert - TiAlN/TiAlCrN Finish, 80° Diamond, 1/2" Inscr Circle, 0.0157" Corner Radius
Item #: 47902689
Brand: Seco
Model #: 57487
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGA |
| Insert Size | 431S |
| Material | PCBN |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CH0550 |
| Coating | TiAlN/TiAlCrN |
| Material Grade | H05 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Relief Angle | 0 |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Secomax |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
