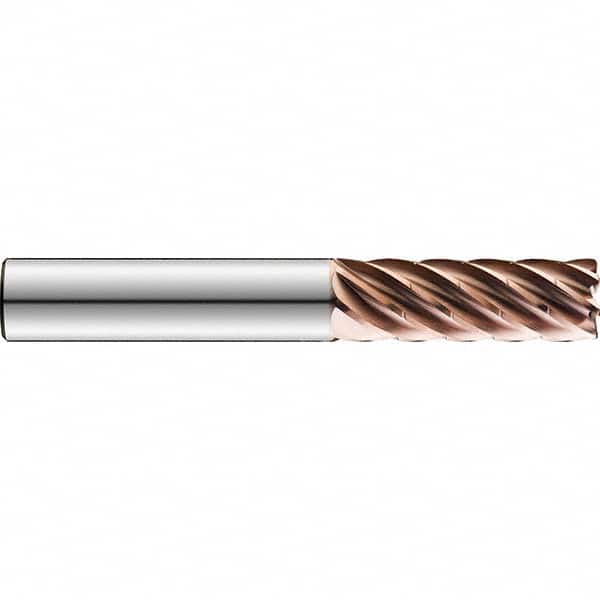

SGS - 25mm Diam 7 Flute Solid Carbide 1mm Corner Radius End Mill
Item #: 15170087
Brand: SGS
Model #: 74591
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 25.00 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-M |
| Length of Cut (mm) | 100.00 |
| Shank Diameter (mm) | 25.00 |
| Overall Length (mm) | 170.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 37 |
| Maximum Helix Angle | 37 |
| Length Type | Extra Long |
| Centercutting | No |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (mm) | h6 |
| Extended Reach | No |
| Overall Length Tolerance (mm) | 0.062 to -0.062 |
| Overall Length Tolerance (Decimal Inch) | 0.062 to -0.062 |
| Shank Type | Round |
| PSC Code | 3445 |
| Series/List | 77 |
| Chipbreaker | Yes |
