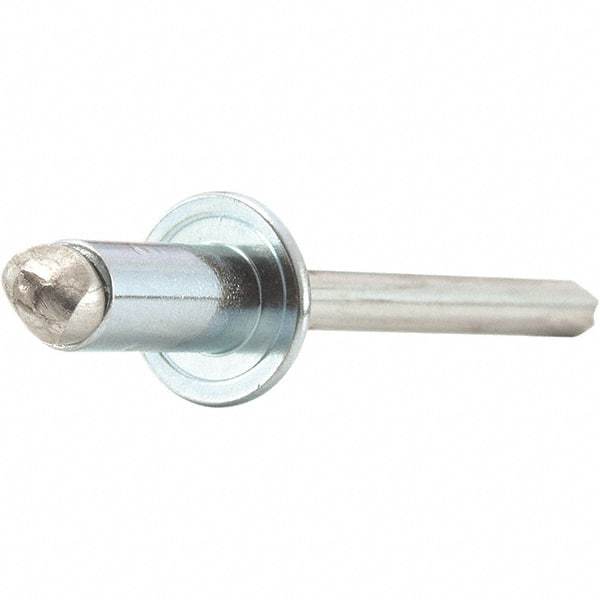

STANLEY Engineered Fastening - Size 4 Dome Head Stainless Steel Open End Blind Rivet - Stainless Steel Mandrel, 0.126" to 0.187" Grip, 1/8" Head Diam, 0.129" to 0.133" Hole Diam, 0.077" Body Diam
Item #: 47848098
Brand: STANLEY Engineered Fastening
Model #: POPSSD43SSBS
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Dome |
| Size Code | 4 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.1260 |
| Maximum Grip (Decimal Inch) | 0.1870 |
| Head Diameter (Inch) | 1/8 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Rivet Material Grade | 300 |
| Mandrel Material Grade | 300 |
| Body Diameter (Decimal Inch) | 0.0770 |
| Shear Strength (Lb.) | 550 |
| Tensile Strength (Lb.) | 700 |
| Rivet Finish/Coating | Plain/Uncoated (Rivet) |
