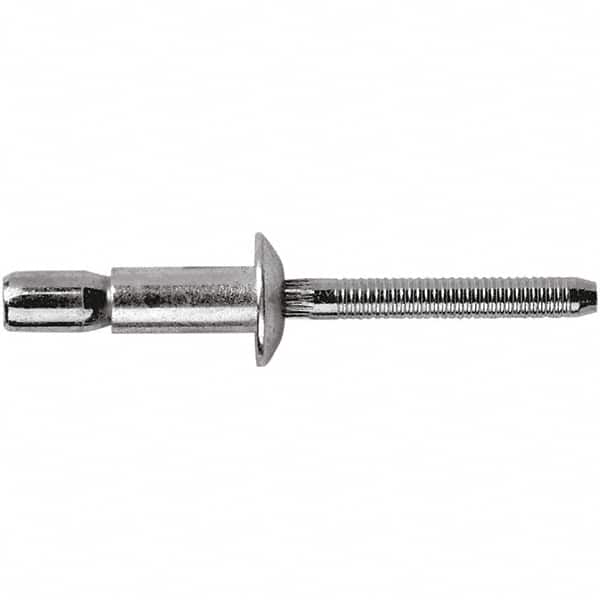

STANLEY Engineered Fastening - Size 6 Countersunk Head Steel Structural with Locking Stem Blind Rivet - Steel Mandrel, 1/8" to 0.331" Grip, 3/16" Head Diam, 0.191" to 0.201" Hole Diam, 0.114" Body Diam
Item #: 47847900
Brand: STANLEY Engineered Fastening
Model #: POPSSCI-06-06
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Countersunk head rivets lie flush against the workpiece material and have large bearing surfaces.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Countersunk |
| Size Code | 6 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Inch) | 1/8 |
| Maximum Grip (Decimal Inch) | 0.3310 |
| Head Diameter (Inch) | 3/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.1910 |
| Maximum Hole Diameter (Decimal Inch) | 0.2010 |
| Rivet Material Grade | 1083 |
| Mandrel Material Grade | 1083 |
| Countersunk Head Angle | 100.00 |
| Body Diameter (Decimal Inch) | 0.1140 |
| Shear Strength (Lb.) | 1300 |
| Tensile Strength (Lb.) | 900 |
| Rivet Finish/Coating | Zinc-Plated |
