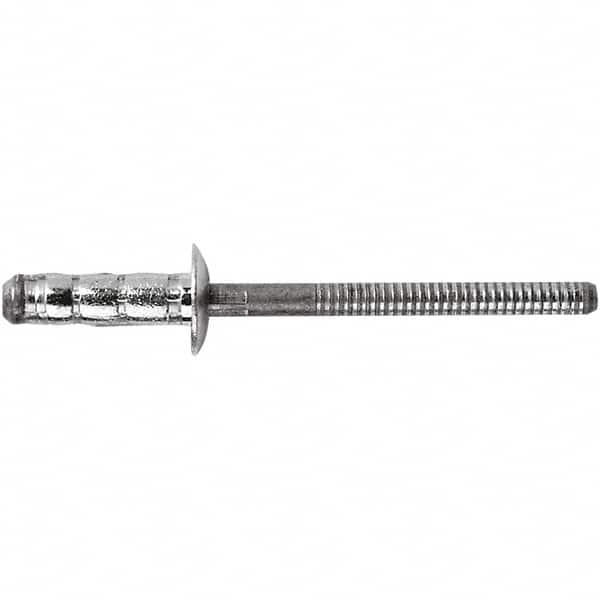

STANLEY Engineered Fastening - Size 6 Dome Head Steel Multi Grip Blind Rivet - Steel Mandrel, 1/4" to 1/2" Grip, 3/16" Head Diam, 0.1921" to 0.1961" Hole Diam, 3" Body Diam
Item #: 47810437
Brand: STANLEY Engineered Fastening
Model #: POP0BS01-00622
Exact Tooling IR#: 04
Features and Benefits
Multi grip rivets have a wide grip range to ensure the hole is completely filled. They are ideal for oversized, misaligned or oddly shaped holes.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Multi Grip |
| Head Type | Dome |
| Size Code | 6 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Inch) | 1/4 |
| Maximum Grip (Inch) | 1/2 |
| Head Diameter (Inch) | 3/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.1921 |
| Maximum Hole Diameter (Decimal Inch) | 0.1961 |
| Rivet Material Grade | 1008 |
| Mandrel Material Grade | 1010-1022 |
| Body Diameter (Decimal Inch) | 3.0000 |
| Shear Strength (Lb.) | 2 |
| Tensile Strength (Lb.) | 2.89 |
| Rivet Finish/Coating | Zinc-Plated |
