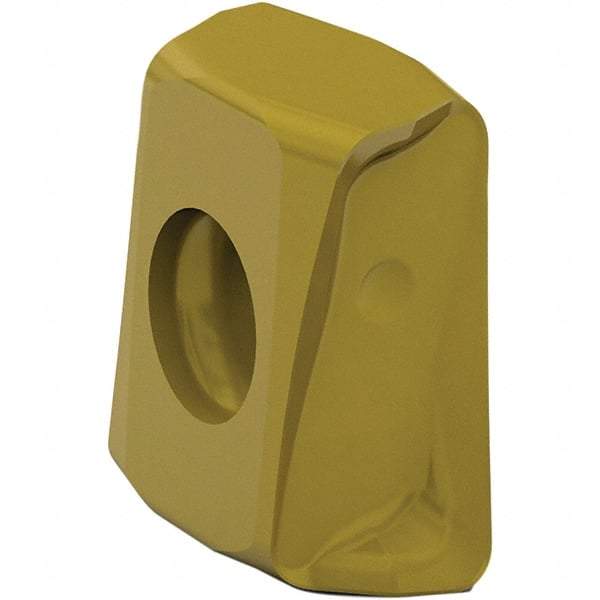

Seco - LOEX120731 M12 Grade MS2050 Carbide Milling Insert - TiAlN/NbN Finish, 7.5mm Thick, 3.1mm Corner Radius
Item #: 47769583
Brand: Seco
Model #: 52881
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOEX |
| Insert Size | 120731 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | MS2050 |
| Coating | TiAlN/NbN |
| Width (mm) | 7.50 |
| Length (mm) | 14.20 |
| Thickness (mm) | 7.50 |
| Corner Radius (mm) | 3.10 |
| Hole Diameter (mm) | 4.30 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | M12 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R217/220.94-12 |
