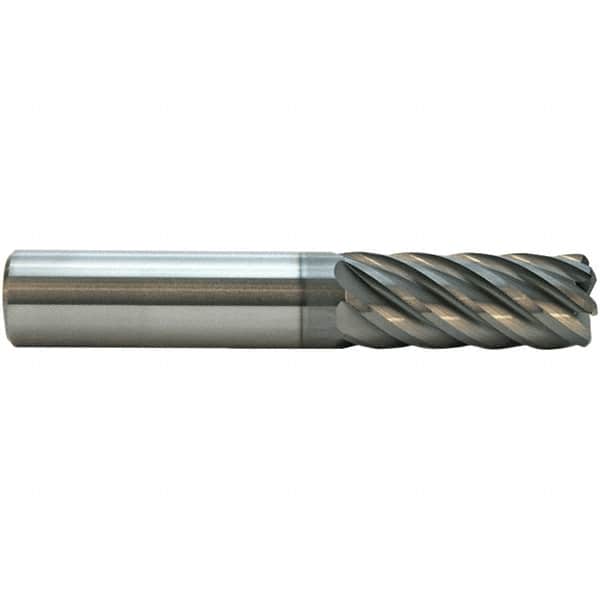

M.A. Ford - 10mm, 22mm LOC, 10mm Shank Diam, 72mm OAL, 7 Flute, Solid Carbide Square End Mill - Single End, ALtima Blaze Finish, Spiral Flute, 38° Helix, Right Hand Cut, Right Hand Flute, Series 180
Item #: 47748595
Brand: M.A. Ford
Model #: 18039300B
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima Blaze, a form of (AlCrN), has a higher oxidation temperature than TiAlN. It is used on nickel alloys, titanium and other difficult-to-machine materials. ALtima Blaze is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 7 |
| Length of Cut (mm) | 22.00 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Shank Diameter (mm) | 10.00 |
| Single or Double End | Single |
| Overall Length (mm) | 72.00 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Flute Type | Spiral |
| Length Type | Regular |
| Helix Style | Medium |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/-0.0011 |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | 180 |
