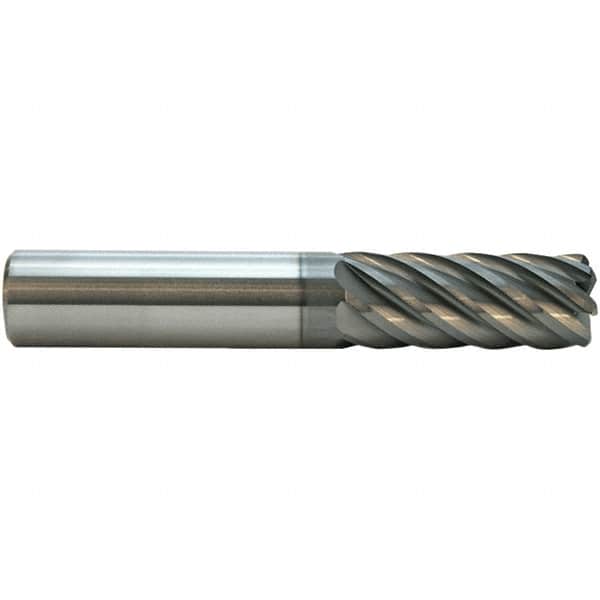

M.A. Ford - 3/8", 7 Flute, Single End, Solid Carbide, 0.015" Corner Radius End Mill - 2-1/2" OAL, 38° Helix, Right Hand Flute, 1/2" LOC, Right Hand Cut
Item #: 47748108
Brand: M.A. Ford
Model #: 18037502B
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima Blaze, a form of (AlCrN), has a higher oxidation temperature than TiAlN. It is used on nickel alloys, titanium and other difficult-to-machine materials. ALtima Blaze is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.015 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0011 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Shank Type | Straight |
| Series/List | 180 |
| Chipbreaker | No |
