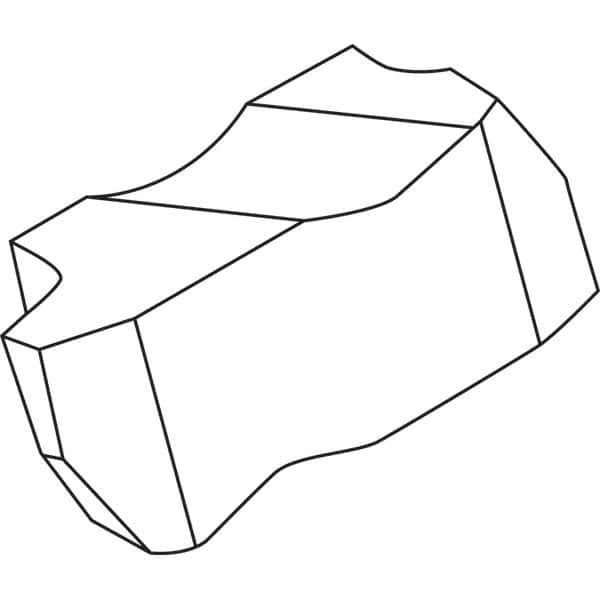

Kennametal - NA3 Grade KCU10, Internal/External Acme Threading Insert - 16 TPI Ext Pitch, 16 TPI Int Pitch, Left Hand Insert, AlTiN Finish, Carbide
Item #: 47695259
Brand: Kennametal
Model #: 5161120
Exact Tooling IR#: 04
Features and Benefits
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NA |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Acme |
| Manufacturer's Grade | KCU10 |
| Internal Pitch/TPI | 16 TPI |
| External Pitch/TPI | 16 TPI |
| Coating | AlTiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0050 |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (mm) | 0.13 |
| Thickness (Decimal Inch) | 0.3440 |
| Series | Top Notch |
| Included Angle of Threading Tip | 29 |
| Length (Decimal Inch) | 0.8900 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
