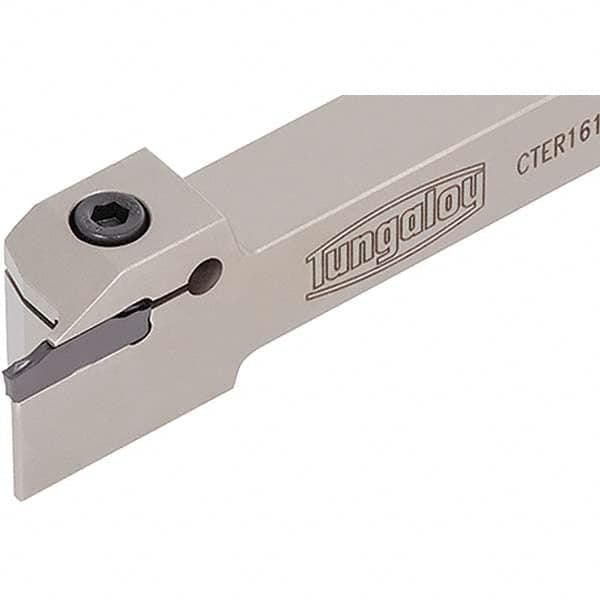

Tungaloy - 0.984" Max Depth, 0.157" Min Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 47655675
Brand: Tungaloy
Model #: 6880655
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | TungCut |
| Toolholder Style | CTE |
| Insert Compatibility | DG..; DT..; SG.. |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4880 |
| Head Length (Decimal Inch) | 1.7720 |
| Shank Length (Decimal Inch) | 2.7280 |
| Mount Size | 10 |
| Manufacturers Catalog Number | CTER10-4T25 |
| Complete Insert Compatibility | DGG; DGM; DGS; DTE; DTM; DTR; DTX; SGM; SGN; SGS |
| Insert Seat Size | 4.0 |
