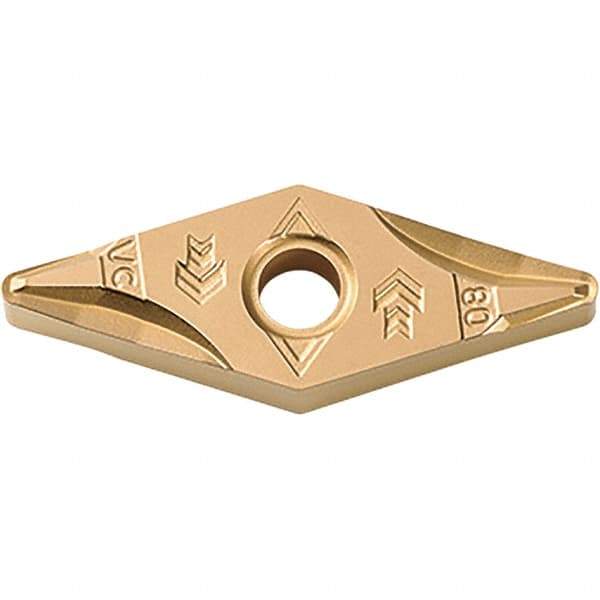

Kyocera - VNMG333 VC Grade CA025P Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 47581749
Brand: Kyocera
Model #: 8860564
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 333 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | CA025P |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | VC |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160412R-VC |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | VNMG333RVC CA025P |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | External Turning, Copying, Facing, Undercutting |
| MultiUseTool | Yes |
| Shape | Diamond |
