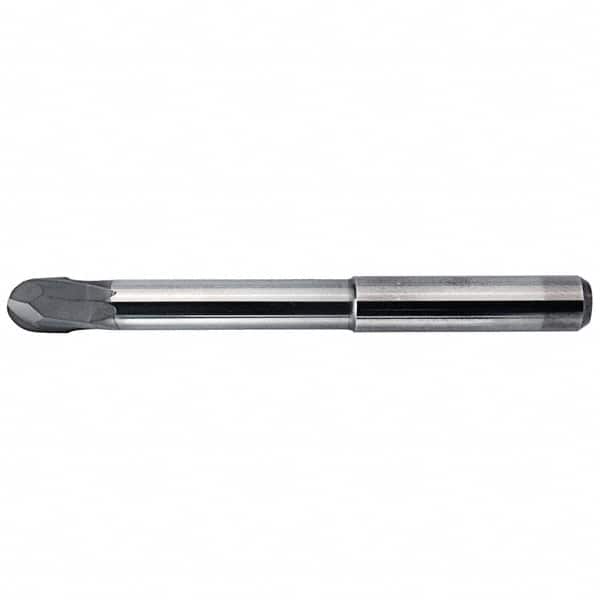

Kennametal - 3mm Diam, 3mm LOC, 2 Flute Solid Carbide Ball End Mill - AlTiN Finish, Single End, 70mm OAL, 6mm Shank Diam, Ball Flute
Item #: 47570296
Brand: Kennametal
Model #: 6524810
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 3.00 |
| Material | Solid Carbide |
| Overall Length (mm) | 70.00 |
| Shank Diameter (mm) | 6.00 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 20.00 |
| Neck Length (Decimal Inch) | 0.5118 |
| Extended Reach | Yes |
| Nose Radius (Decimal Inch) | 0.0591 |
| Flute Type | Ball |
| Length Type | Extra Long |
| Reach Length (mm) | 16.28 |
| Series/List | F2AL |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
