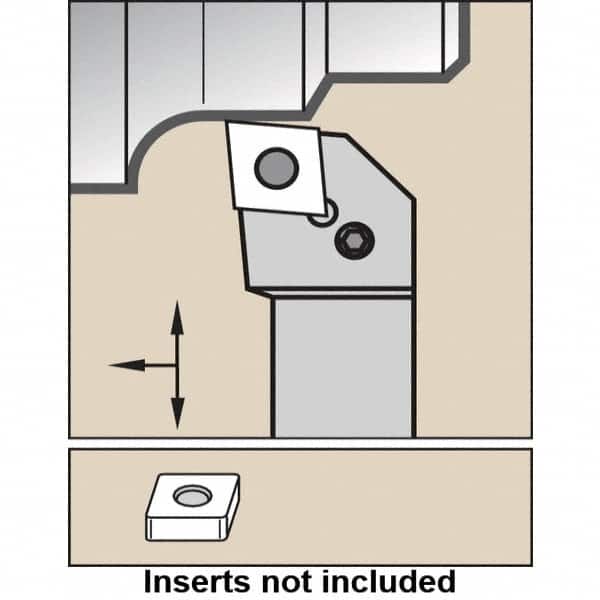

Kennametal - PCLN, Left Hand Cut, -5° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, CN.. 1204.. Insert Compatibility, Series PCLN
Item #: 47548151
Brand: Kennametal
Model #: 1244799
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PCLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | PCLN |
| Lead Angle | -5 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Overall Length (mm) | 100.00 |
| Insert Compatibility | CN.. 1204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Head Length (mm) | 26.00 |
| Toolholder Material | Steel |
