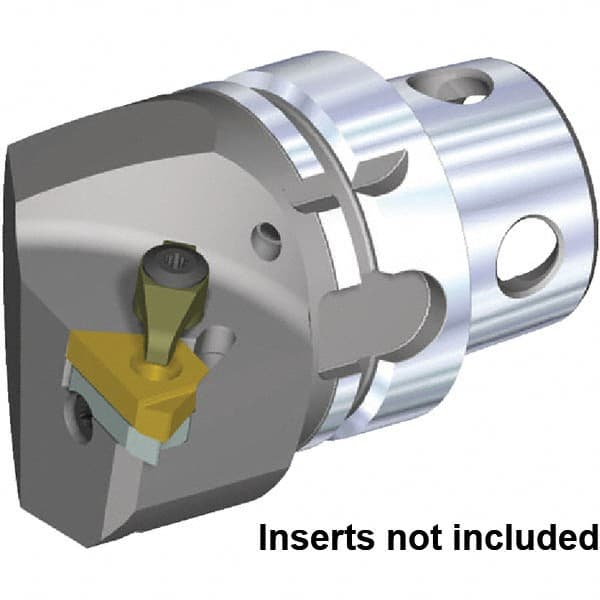

Kennametal - Insert Style LT 27NR, 70mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM4X63, 43mm Center to Cutting Edge, Series KM4X
Item #: 47547229
Brand: Kennametal
Model #: 5543562
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X63 |
| Series Name | KM4X |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 43.00 |
| Head Length/Projection (mm) | 70.00 |
| Insert Style | LT 27NR |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Minimum Hole Diameter (mm) | 86.00 |
| Axial Rake Angle | -1 |
| Radial Rake Angle | -15 |
