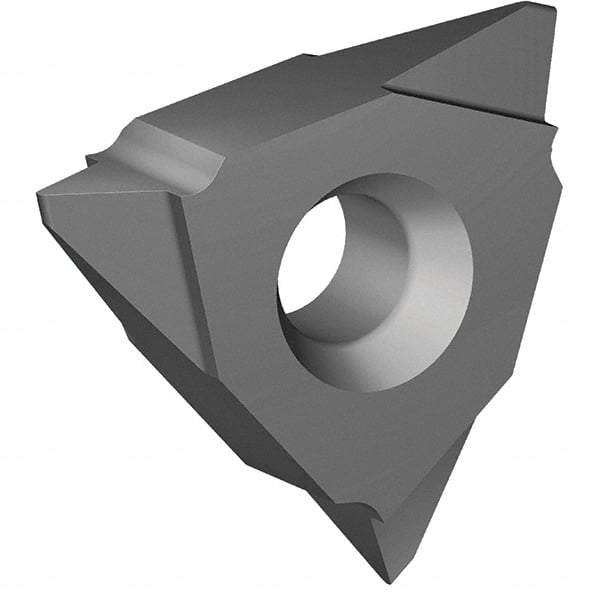

Vargus - 5VIR Internal Right Hand 4 Acme 2G Laydown Threading Insert - Grade VTX, TiAIN Coated Carbide, 15.88mm Inscribed Circle
Item #: 47540786
Brand: Vargus
Model #: 023-00065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 5VIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ACME 2G |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Threads Per Inch | 4 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Included Angle of Threading Tip | 29 |
| Coating | TiAIN |
| Coating Process | PVD |
| Series | V Style |
