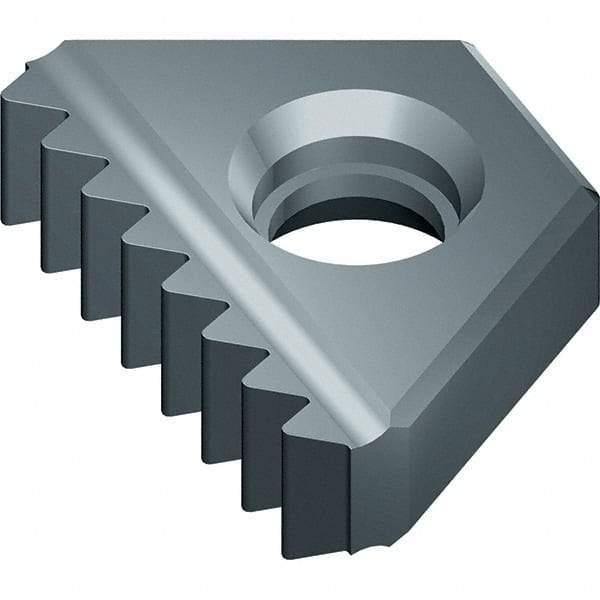

Vargus - 16 TPI, Internal Thread, UNJ Standard, 5I VBX Grade Thread Mill Insert - Carbide, TiCN Coating
Item #: 47509674
Brand: Vargus
Model #: 086-00690
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | 5I |
| Thread Type | Internal |
| Thread Standard | UNJ |
| Threads Per Inch | 16 |
| Length (mm) | 27 |
| Length (Decimal Inch) | 1.0630 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VBX |
| Material | Carbide |
| Coating | TiCN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
