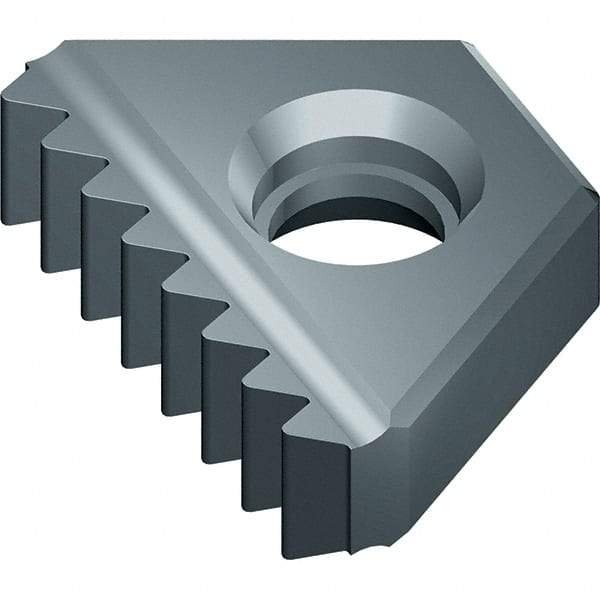

Vargus - 18 TPI, Internal/External Thread, Whitworth Standard, 3EI VK2 Grade Thread Mill Insert - Carbide, Uncoated
Item #: 47509195
Brand: Vargus
Model #: 086-00696
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | 3EI |
| Thread Type | Internal/External |
| Thread Standard | Whitworth |
| Threads Per Inch | 18 |
| Length (mm) | 22 |
| Length (Decimal Inch) | 0.8660 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VK2 |
| Material | Carbide |
| Coating | Uncoated |
| Coating Process | PVD |
| Inscribed Circle (mm) | 14.04 |
| Inscribed Circle (Decimal Inch) | 0.5520 |
