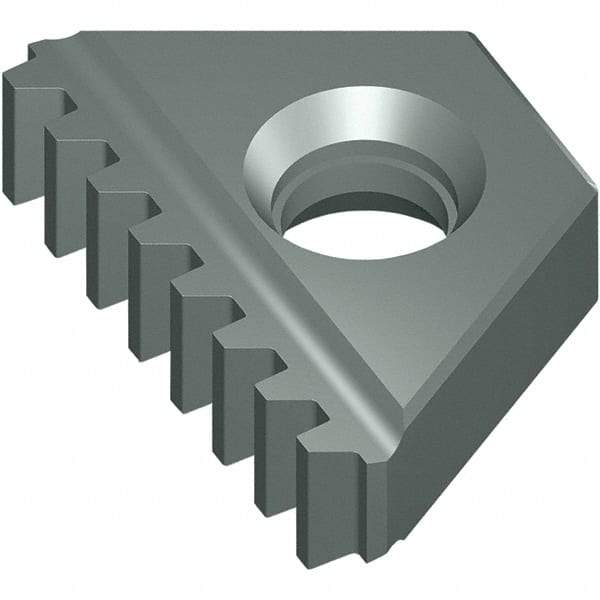

Vargus - 12 TPI, Internal Thread, Acme Standard, 2I VTX Grade Thread Mill Insert - Carbide, TiAIN Coating
Item #: 47507728
Brand: Vargus
Model #: 087-00133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 2I |
| Thread Type | Internal |
| Thread Standard | Acme |
| Threads Per Inch | 12 |
| Length (mm) | 11 |
| Length (Decimal Inch) | 0.4330 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Material | Carbide |
| Coating | TiAIN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
