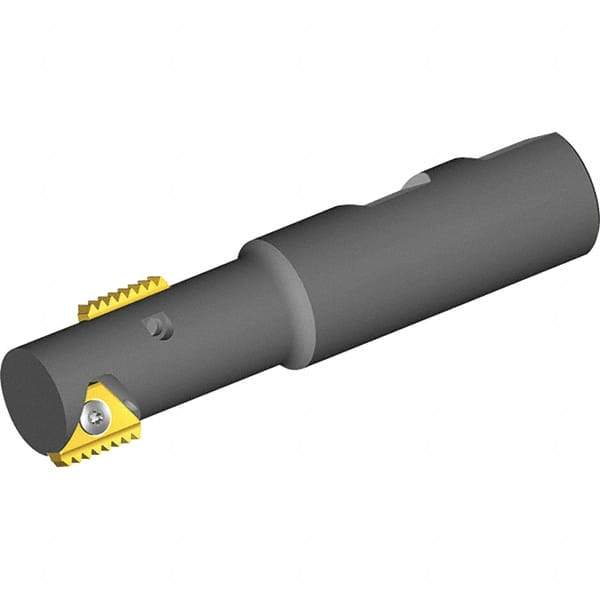

Vargus - 0.787" Cut Diam, 1.69" Max Depth of Cut, 3/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 3, 3/8" Insert Size, 1 Insert, Toolholder Style TMOC, 3.74" OAL
Item #: 47497367
Brand: Vargus
Model #: 67716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.787 |
| Maximum Hole Depth (Decimal Inch) | 1.6900 |
| Insert Style | 3 |
| Insert Size (Decimal Inch) | 0.3750 |
| Toolholder Style | TMOC |
| Shank Diameter (Decimal Inch) | 0.75 |
| Overall Length (Decimal Inch) | 3.7400 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.65 |
