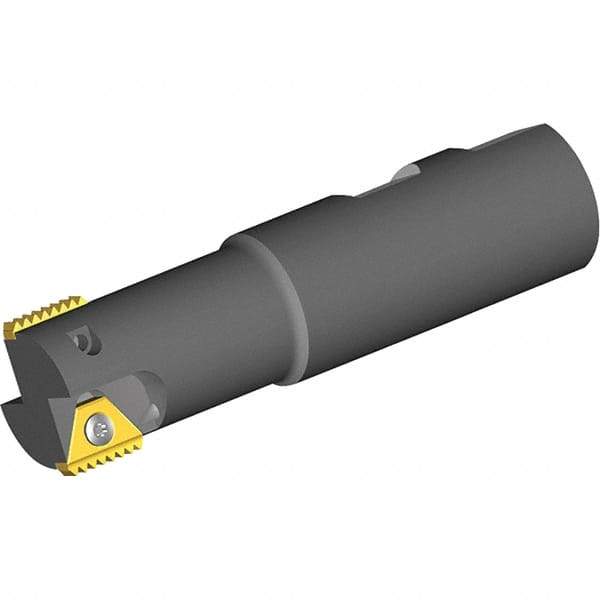

Vargus - 0.669" Cut Diam, 0.79" Max Depth of Cut, 3/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 2, 1/4" Insert Size, 2 Inserts, Toolholder Style TM2C, 3.425" OAL
Item #: 47497144
Brand: Vargus
Model #: 67685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6690 |
| Maximum Hole Depth (Decimal Inch) | 0.7900 |
| Insert Style | 2 |
| Insert Size (Decimal Inch) | 0.2500 |
| Toolholder Style | TM2C |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.4250 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.5700 |
