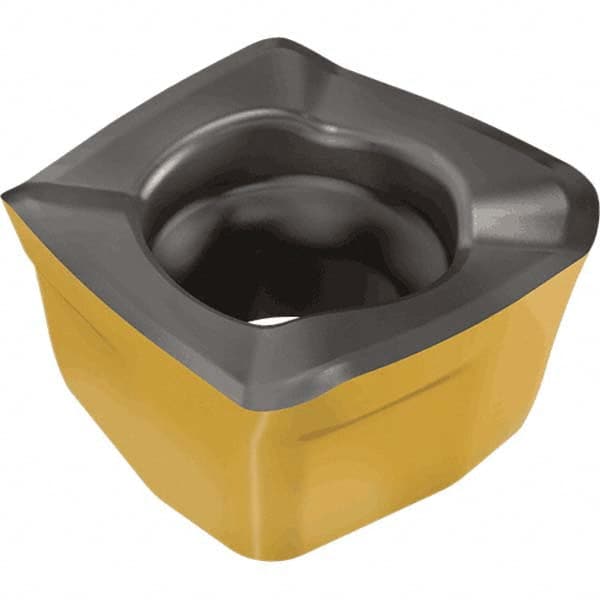

Iscar - SOMT040208PNR-FF IC830 Carbide Milling Insert
Item #: 47453394
Brand: Iscar
Model #: 3340338
Product Specifications
| Insert Style | SOMT |
| Insert Size | 040208 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 4.08 |
| Inscribed Circle (Decimal Inch) | 0.1606 |
| Thickness (mm) | 2.20 |
| Thickness (Decimal Inch) | 0.0866 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0196 |
| Cutter Series Compatibility | SOMT |
