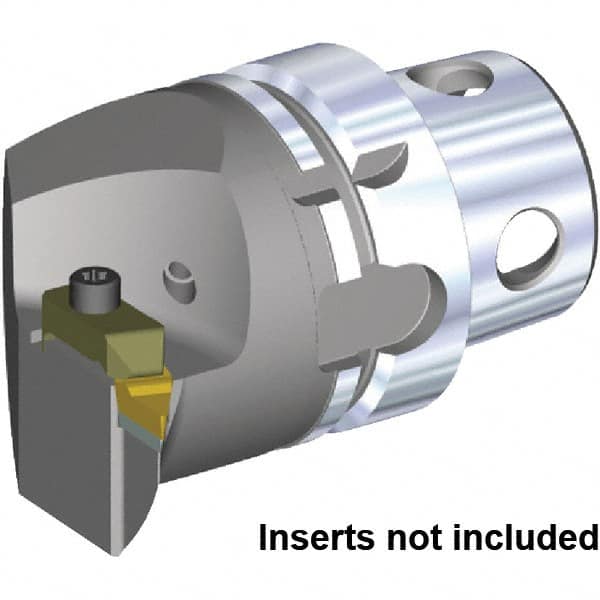

Kennametal - Left Hand Cut, Size KM4X63, VCGR160408 & VPGR332 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 43mm Ctr to Cutting Edge, 70mm Head Length, Through Coolant, Series Top Notch
Item #: 47452818
Brand: Kennametal
Model #: 5577824
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X63 |
| Series Name | Top Notch |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 70.00 |
| Insert Style | VCGR160408; VPGR332 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 43.00 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 70.00 |
| Minimum Hole Diameter (mm) | 86.00 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
