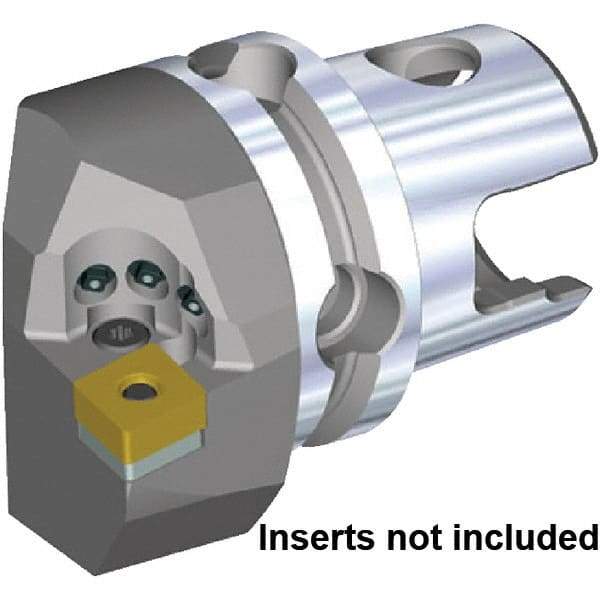

Kennametal - Left Hand Cut, Size KM50TS, CN.. 120408 & CN.. 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series KM50
Item #: 47452792
Brand: Kennametal
Model #: 5697127
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50TS |
| Series Name | KM50 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 50.00 |
| Insert Style | CN.. 120408; CN.. 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 50.00 |
| Minimum Hole Diameter (mm) | 63.00 |
| Axial Rake Angle | -7.000 |
| Radial Rake Angle | -7.000 |
