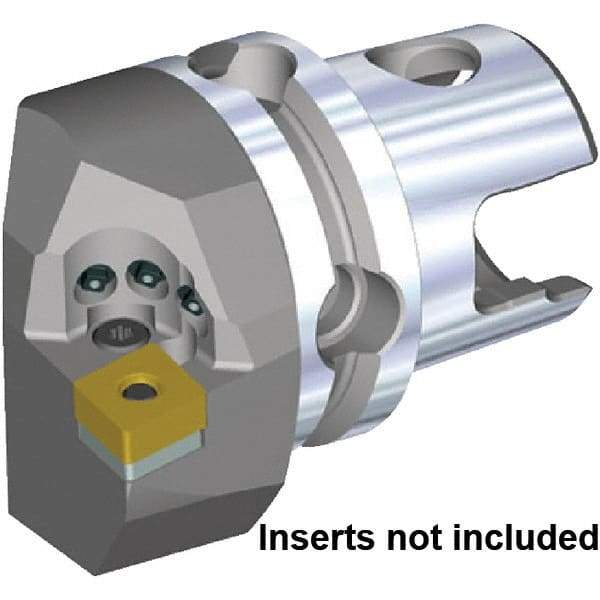

Kennametal - Right Hand Cut, Size KM63TS, CN..543 & CN.. 160612 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 43mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series KM63
Item #: 47452594
Brand: Kennametal
Model #: 5697237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM63TS |
| Series Name | KM63 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.00 |
| Insert Style | CN..543; CN.. 160612 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 43.00 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 60.00 |
| Minimum Hole Diameter (mm) | 80.00 |
| Axial Rake Angle | -7.000 |
| Radial Rake Angle | -7.000 |
