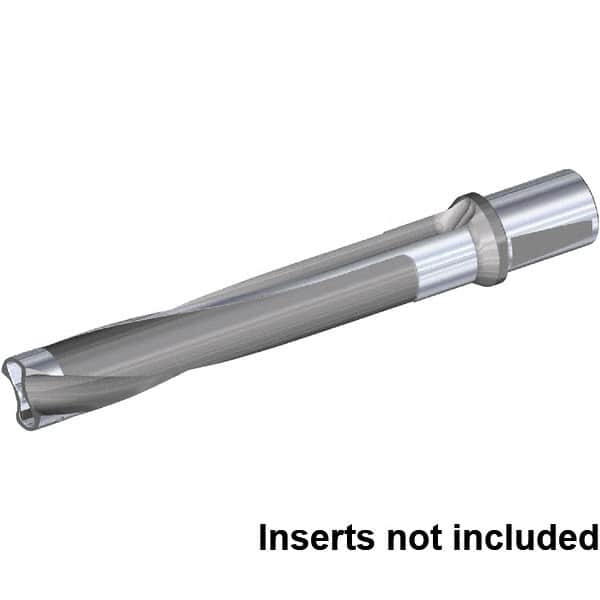

Kennametal - KSEM Plus Series, FDS36 Head Connection, 1.5xD, 32mm Shank Diam, Drill Body - 92mm Body to Flange Length, WD Toolholder, 34.5mm Nose Diam, 92mm Drill Body Length, 40mm Flute Length
Item #: 47452347
Brand: Kennametal
Model #: 6123572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS36 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 32.00 |
| Drill Body Length to Flange (mm) | 92.00 |
| Toolholder Style | WD |
| Nose Diameter (mm) | 34.50 |
| Overall Length (mm) | 150.00 |
| Gage Length (mm) | 92.00 |
| Flute Length (mm) | 40.00 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 58.00 |
| Through Coolant | No |
