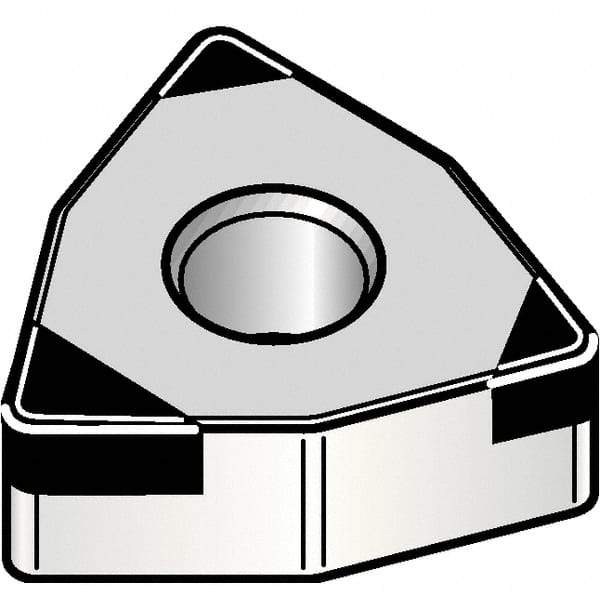

Kennametal - WNGA432 Grade KBH20 CBN Turning Insert - AlTiN Finish, 80° Trigon, 1/2" Inscr Circle, 0.1883" Thick, 0.0312" Corner Radius
Item #: 47451752
Brand: Kennametal
Model #: 5640997
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | WNGA |
| Insert Size | 432 |
| Material | CBN |
| Length (Decimal Inch) | 0.3420 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1883 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KBH20 |
| Coating | AlTiN |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Lead Angle | -5.000 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Trigon |
