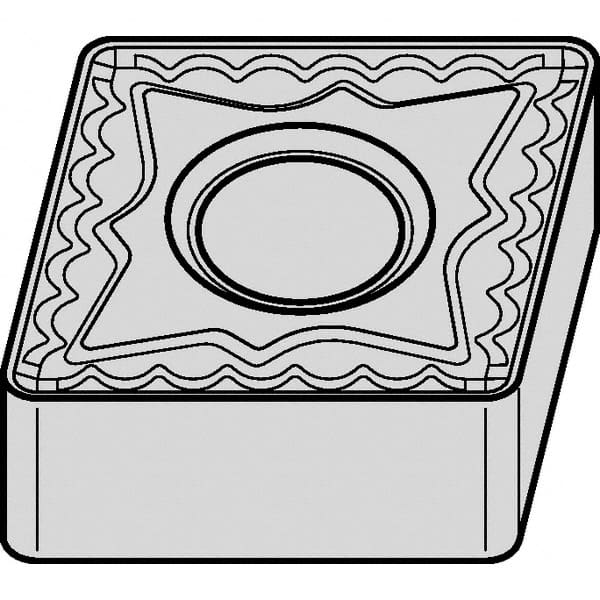

Kennametal - CNMG433 MG Grade KCP25B Carbide Turning Insert - TiOCN Finish, 80° Diamond/Rhombic, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 47451356
Brand: Kennametal
Model #: 5989963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | MG |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Diamond/Rhombic |
