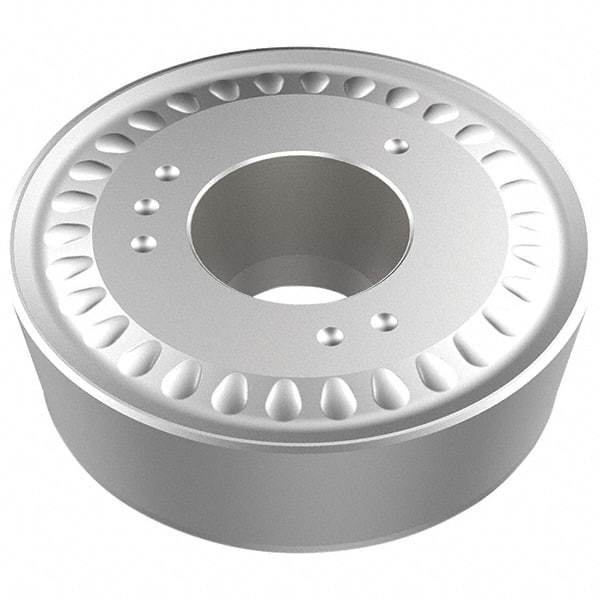

Seco - RCMX320900 RR93 Grade TP0501 Carbide Turning Insert - Ti(C/N)/Al2O3/TiN Finish, Round, 32mm Inscr Circle, 9.52mm Thick, 16mm Corner Radius
Item #: 47429378
Brand: Seco
Model #: 03084627
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 320900 |
| Material | Carbide |
| Inscribed Circle (mm) | 32.00 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Thickness (Decimal Inch) | 0.3700 |
| Thickness (mm) | 9.52 |
| Corner Radius (mm) | 16 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | TP0501 |
| Coating | Ti(C/N)/Al2O3/TiN |
| Chip Breaker | RR93 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| Multi Use Application | Turning |
| Shape | Round |
