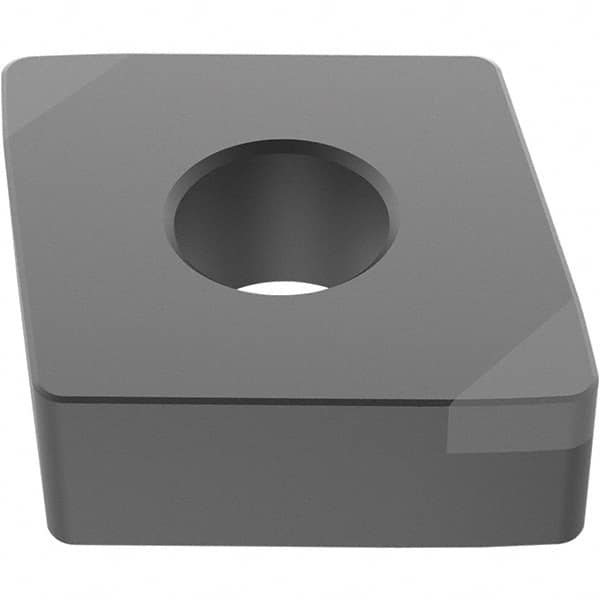

Seco - CNGA433 Grade CBN060K PCBN Turning Insert - TiAlN/TiSiN Finish, Parallelogram, 1/2" Inscr Circle, 4.76mm Thick, 0.03" Corner Radius
Item #: 47429337
Brand: Seco
Model #: 03201840
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGA |
| Insert Size | 433 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1900 |
| Thickness (mm) | 4.76 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Manufacturer's Grade | CBN060K |
| Coating | TiAlN/TiSiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Chamfered |
| FullRadius | No |
| Multi Use Application | Turning |
| Shape | Parallelogram |
