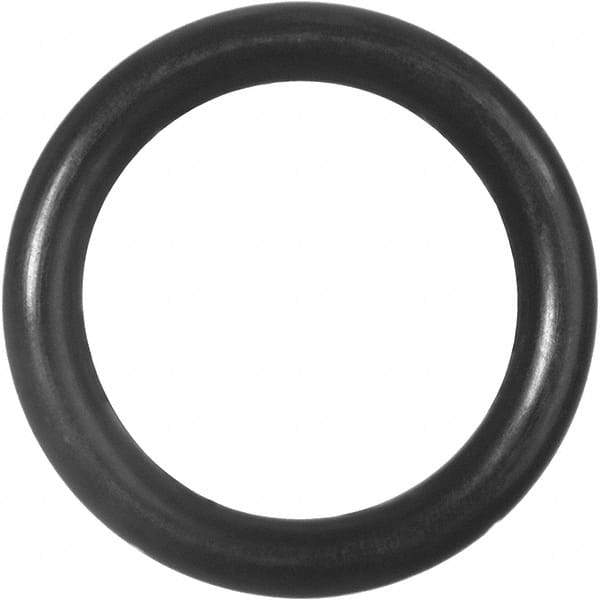

Value Collection - 1-15/16" ID x 2-1/8" OD, Buna-N O-Ring - 3/32" Thick, Round Cross Section
Item #: 47413133
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
Buna-N, also known as nitrile rubber (NBR), is made of a synthetic rubber that has anti-microbial properties and is resistant to chemicals, oils, solvents, greases and petroleum-based fluids. It is resistant to abrasions, cuts, punctures, slashes and snags.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Buna-N |
| Dash Number | 135 |
| System of Measurement | Inch |
| Durometer (Shore A) | 50A |
| Inside Diameter (Inch) | 1-15/16 |
| Inside Diameter (Decimal Inch) | 1.9250 |
| Outside Diameter (Inch) | 2-1/8 |
| Outside Diameter (Decimal Inch) | 2.1310 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.1030 |
| Maximum Temperature (F) | 250.000 |
| Minimum Temperature (F) | -40 |
| Number of Pieces | 25 |
