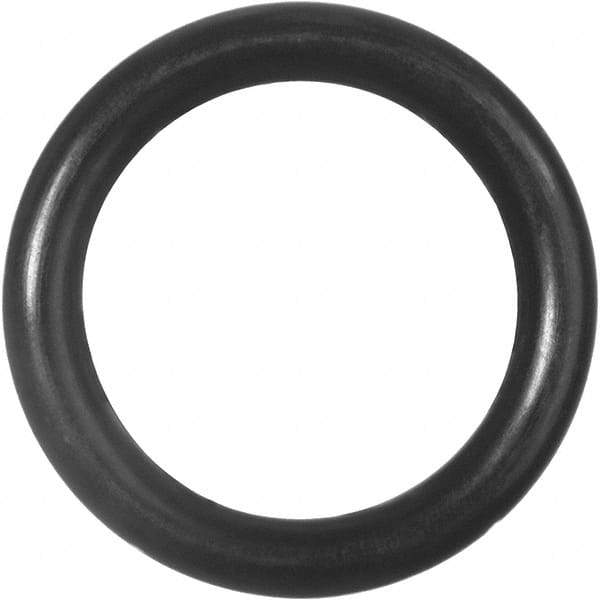

Value Collection - 2-7/8" ID x 3-1/8" OD, Buna-N O-Ring - 1/8" Thick, Round Cross Section
Item #: 47412861
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
Buna-N, also known as nitrile rubber (NBR), is made of a synthetic rubber that has anti-microbial properties and is resistant to chemicals, oils, solvents, greases and petroleum-based fluids. It is resistant to abrasions, cuts, punctures, slashes and snags.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Buna-N |
| Dash Number | 233 |
| System of Measurement | Inch |
| Durometer (Shore A) | 50A |
| Inside Diameter (Inch) | 2-7/8 |
| Inside Diameter (Decimal Inch) | 2.8590 |
| Outside Diameter (Inch) | 3-1/8 |
| Outside Diameter (Decimal Inch) | 3.1370 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1390 |
| Maximum Temperature (F) | 250.000 |
| Minimum Temperature (F) | -40 |
| Number of Pieces | 10 |
