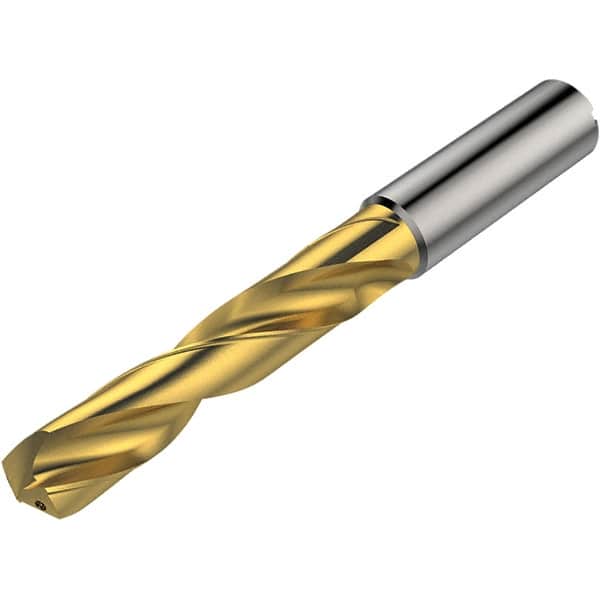

Seco - 6.2mm 140° Solid Carbide Jobber Drill - TiAlN/TiN Finish, Right Hand Cut, Spiral Flute, Round Shank, 91mm OAL
Item #: 47380118
Brand: Seco
Model #: 02547543
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.; Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.20 |
| Drill Bit Size (Decimal Inch) | 0.2440 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN/TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Round |
| Coolant Through | Yes |
| Flute Length (mm) | 55.00 |
| Flute Length (Decimal Inch) | 2.1650 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5830 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3100 |
| Maximum Drilling Depth (Decimal Inch) | 1.3800 |
| Maximum Drilling Depth (mm) | 35.00 |
| Maximum Drilling Depth (Inch) | 1.38 |
| Shank Length (mm) | 36.00 |
| Shank Length (Inch) | 1.42 |
| Shank Length (Decimal Inch) | 1.4200 |
| Number of Flutes | 2 |
| Additional Information | Stainless Steel |
