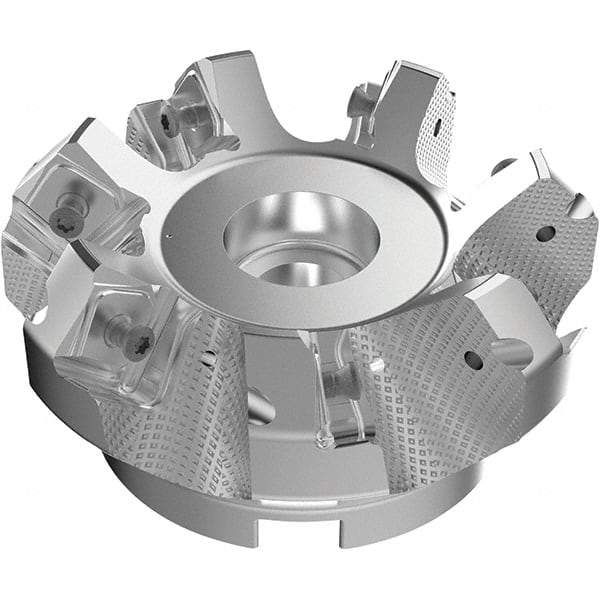

Seco - 3.94" Cut Diam, 1-1/2" Arbor Hole, 9mm Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 7 Inserts, Right Hand Cut, 7 Flutes, Through Coolant, Series R220.54
Item #: 47379151
Brand: Seco
Model #: 03157479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.9400 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 48 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.354 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 7 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (Decimal Inch) | 0.6299 |
| Maximum RPM | 4000 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Toolholder Material | Steel |
