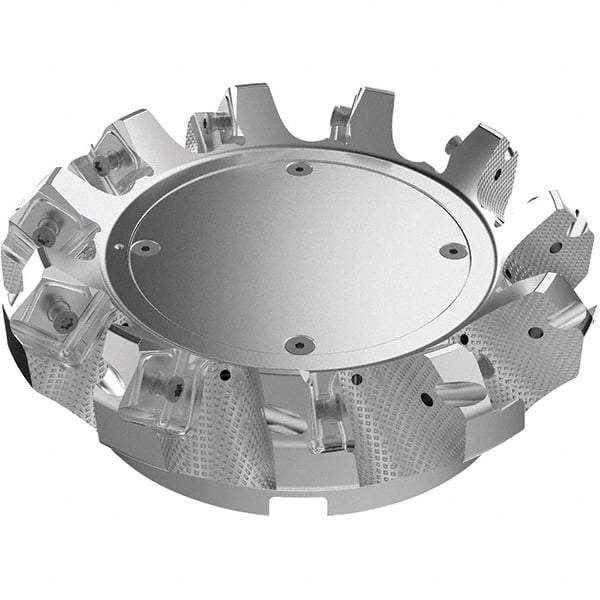

Seco - 160mm Cut Diam, 40mm Arbor Hole, 9mm Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 11 Inserts, 63 Insert, Right Hand Cut, 11 Flutes, Through Coolant, Series R220.54
Item #: 47379086
Brand: Seco
Model #: 03157472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 48 |
| Insert Compatibility | 63 |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.354 |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 11 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Maximum RPM | 3300 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Toolholder Material | Steel |
