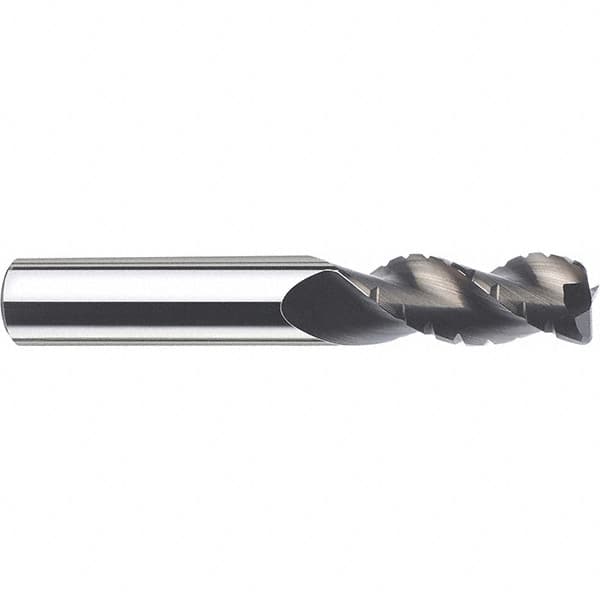

SGS - 6mm Diam, Coarse Pitch, 19mm LOC, 3 Flute Solid Carbide 0.3" Corner Radius Roughing End Mill - TiB2 Finish, 63mm OAL, 6mm Shank Diam, Centercutting, 38° Helix
Item #: 47376637
Brand: SGS
Model #: 44299
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium diboride (TiB2) is a corrosion resistant ceramic compound made of titanium and boron. It is commonly used on nonferrous materials including aluminum and magnesium alloys.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Number of Flutes | 3 |
| Pitch | Coarse |
| Length of Cut (mm) | 19.00 |
| Shank Diameter (mm) | 6.00 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Overall Length (mm) | 63.00 |
| Centercutting | Center Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Corner Radius (Decimal Inch) | 0.3000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Series/List | 43CB |
| Chipbreaker | Yes |
