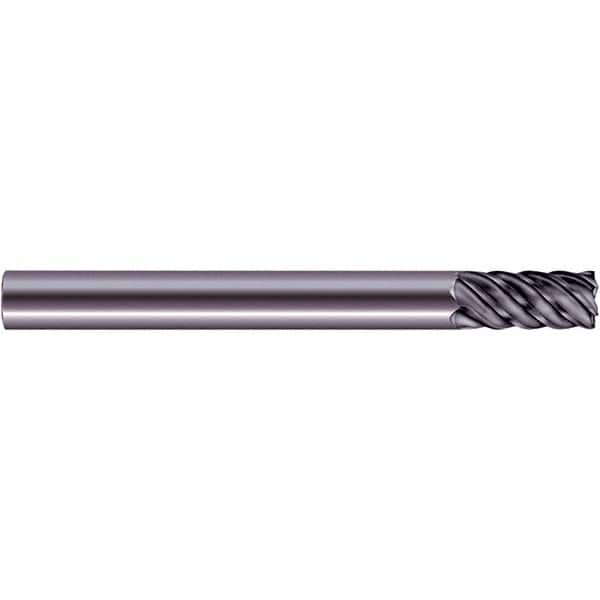

SGS - 20mm, 38mm LOC, 20mm Shank Diam, 165mm OAL, 6 Flute, Solid Carbide Square End Mill - Single End, Ti-NAMITE-X Finish, Spiral Flute, 45° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 57S
Item #: 47375837
Brand: SGS
Model #: 46147
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Ti-NAMITE-X is a multi-layering process results in maximized tool life and increased speed and feed rates in any application. Ti-NAMITE-X is a proprietary coating exclusive to SGS Tool Company.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Number of Flutes | 6 |
| Length of Cut (mm) | 38.00 |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-X |
| Shank Diameter (mm) | 20.00 |
| Single or Double End | Single |
| Overall Length (mm) | 165.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Flute Type | Spiral |
| Series/List | 57S |
