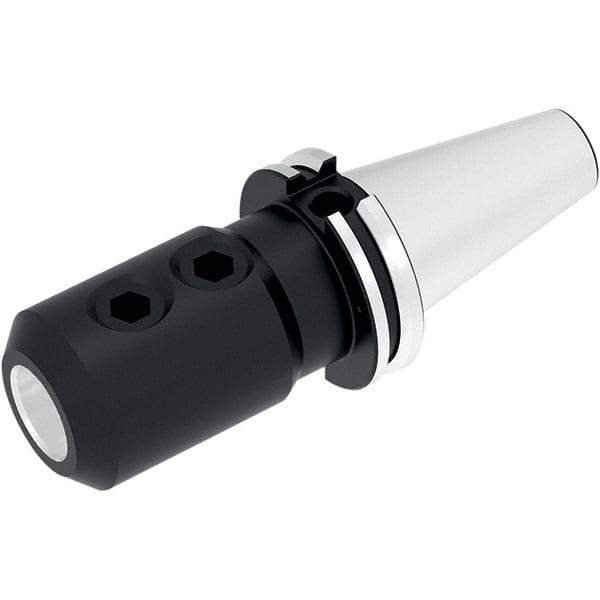

Seco - CAT50 Taper Shank 1-1/2" Hole End Mill Holder/Adapter - 81.79mm Nose Diam, 4" Projection, Through-Spindle & DIN Flange Coolant
Item #: 47359856
Brand: Seco
Model #: 03201531
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1-1/2 |
| Nose Diameter (mm) | 81.79 |
| Projection (Inch) | 4 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Clamping Depth (Inch) | 2-3/4 |
| Clamping Depth (Decimal Inch) | 2.7500 |
| Overall Length (Decimal Inch) | 8.0000 |
| Coolant Type | Through-Spindle & DIN Flange |
