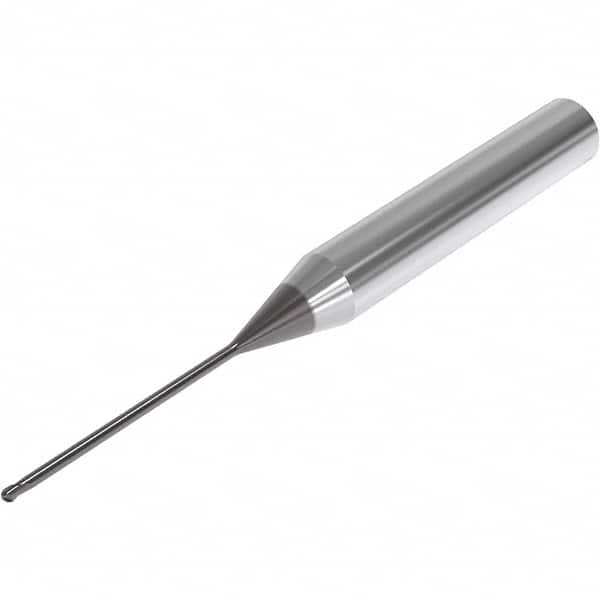

Seco - 1mm Diam, 1mm LOC, 2 Flute Solid Carbide Ball End Mill - SIRON-A Finish, Single End, 60mm OAL, 6mm Shank Diam, Spiral Flute
Item #: 47358692
Brand: Seco
Model #: 03171296
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Siron-A coatings offer heat resistance, allow for smooth chip flows and enhances tool life. It is used on a variety of materials including steel, stainless steel and cast iron. Siron-A is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0390 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 1.00 |
| Length of Cut (Decimal Inch) | 0.0400 |
| Material | Solid Carbide |
| Overall Length (mm) | 60.00 |
| Overall Length (Decimal Inch) | 2.3600 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2400 |
| Finish/Coating | SIRON-A |
| Single or Double End | Single |
| Helix Angle | 30 |
| Neck Length (Decimal Inch) | 0.7500 |
| Extended Reach | Yes |
| Nose Radius (Decimal Inch) | 0.02 |
| Flute Type | Spiral |
| Undercutting | No |
| Length Type | Extra Long |
| Reach Length (mm) | 20.07 |
| Reach Length (Decimal Inch) | 0.7900 |
| Series/List | JMB562 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
