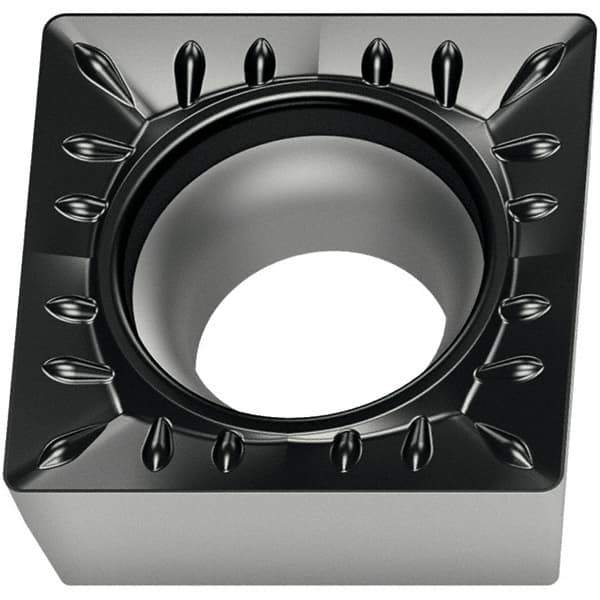

Walter - SCMT RM4 Grade WSM10S Turning Insert - TiAlN+Al2O3+(Al) Finish, 90° Square, 12.7mm Inscr Circle, 4.76mm Thick, 0.8mm Corner Radius
Item #: 47336664
Brand: Walter
Model #: 6839128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WSM10S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | RM4 |
| Insert Length (Decimal Inch) | 0.5000 |
| OverallLength (mm) | 12.70 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Length (mm) | 12.7000 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| ISO Number | SCMT120408-RM4 WSM10S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6839128 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SCMT-RM4 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Cutting Width (mm) | 12.70 |
| Shape | Square |
