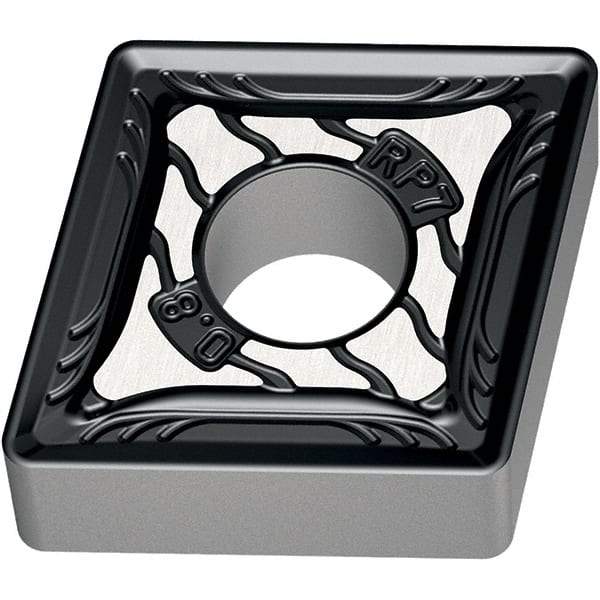

Walter - CNMG RP7 Grade WPP20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 80° Rhombic, 25.4mm Inscr Circle, 9.53mm Thick, 2.4mm Corner Radius
Item #: 47336227
Brand: Walter
Model #: 6815823
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Length (mm) | 25.79 |
| Length (Decimal Inch) | 1.0150 |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (mm) | 2.4 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | WPP20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RP7 |
| Insert Length (Decimal Inch) | 1.0150 |
| OverallLength (mm) | 25.79 |
| Overall Length (Decimal Inch) | 1.0150 |
| Insert Length (mm) | 25.7918 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| ISO Number | CNMG250924-RP7 WPP20S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WPP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6815823 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CNMG-RP7 |
| Maximum Depth of Cut (mm) | 25.79 |
| Maximum Depth of Cut (Decimal Inch) | 1.0150 |
| Cutting Width (mm) | 25.79 |
| Shape | Rhombic 80 |
